The Duralok Shoring System is widely applied in various fields, including airport construction, railway engineering, highway bridges, metro depots and stations, water conservancy and hydropower projects, as well as general building construction. Compared with conventional products, this system significantly reduces material consumption, optimizes on-site space utilization, alleviates transportation pressure, and improves overall construction efficiency.

In Duralok Shoring System, the standards, ledgers, and diagonal braces all have a diameter of 48.3mm, a wall thickness of 3.2mm, and are made of Q355B steel. Compliant with European standards.

Advantages

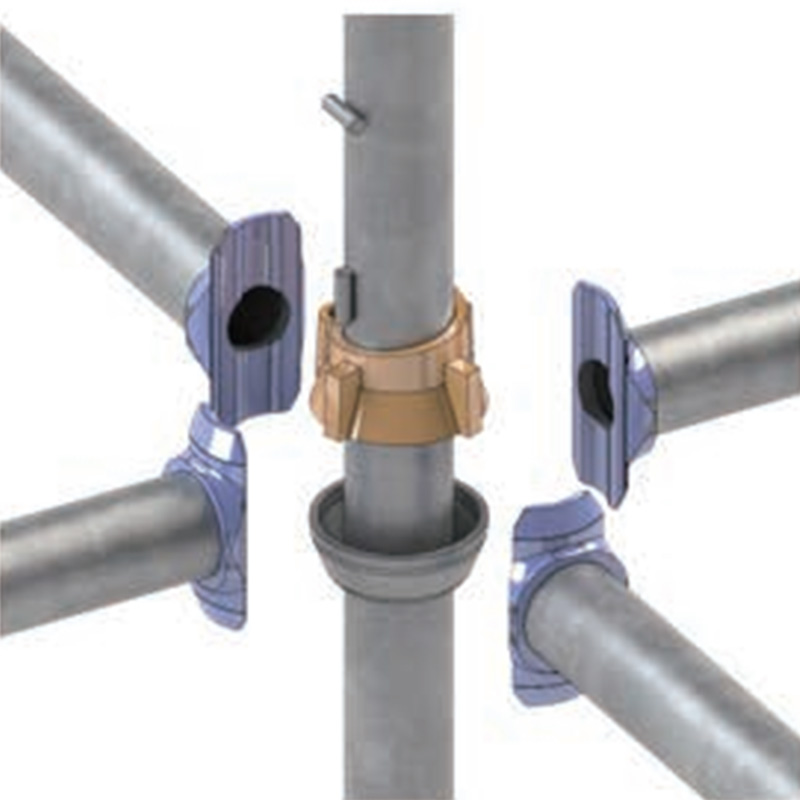

  • Forged Nodes, Stronger Load Capacity

Rotational stiffness exceeds 100 kN·m/rad; each standard supports up to 120 kN, ensuring greater structural stability.

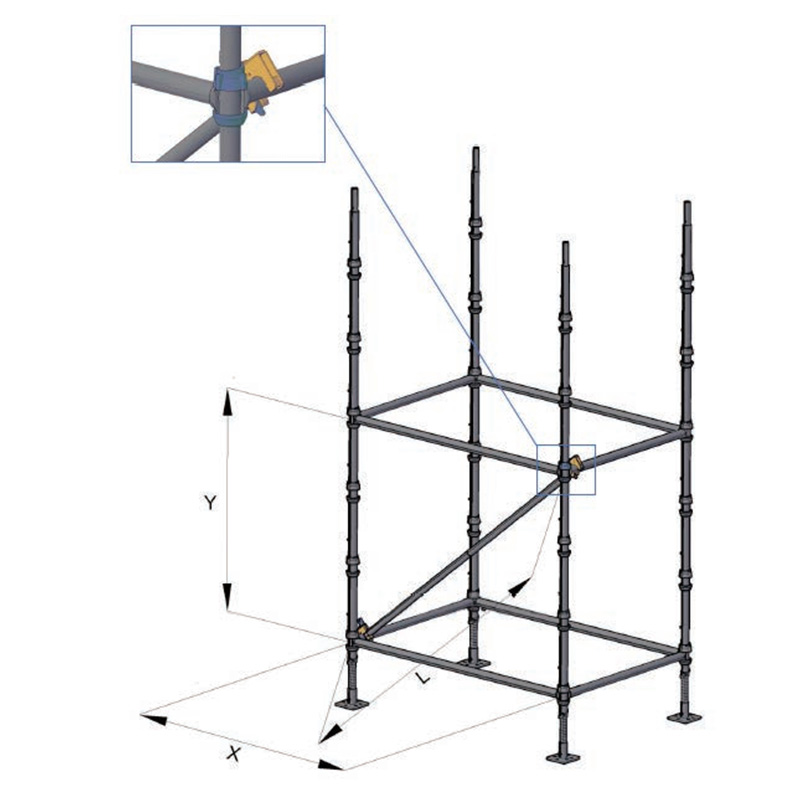

  • Diagonal Bracing, Stable and Reliable

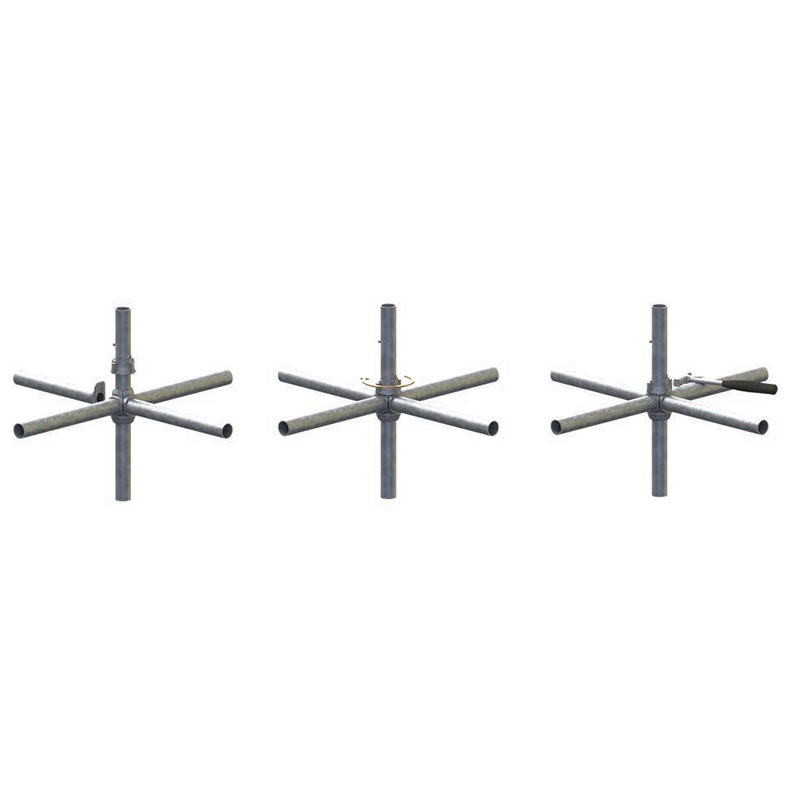

Snap-on diagonal braces pass through node points, enhancing overall stability and lateral resistance.



  • Fewer Components, Longer Lifespan

Streamlined design with all parts hot-dip galvanized for corrosion resistance and minimal maintenance.



  • Flexible Layout, Efficient Assembly

Multiple ledger sizes support various spacing options; the system connects easily for fast and efficient installation.
